  <h2>Rebuilding 2 km of MIDC industrial road at Ambarnath West</h2>
  <p class="ck-lead">The stretch between the CNG pump and Forest Naka carries loaded tankers and container traffic for a dozen chemical, polymer and pharmaceutical plants. Civikor surveyed the full 2,016 m corridor, designed it as three width-graded packages, and detailed a rigid pavement built for industrial axle loads rather than city traffic.</p>
</section>

<section class="ck-block">
  <h3>At a glance</h3>
  <table class="ck-table">
    <tbody>
      <tr><th scope="row">Project</th><td>Construction of cement concrete roads, MIDC Ambarnath West — CNG Pump to Forest Naka sector</td></tr>
      <tr><th scope="row">Client</th><td>Ambarnath Municipal Council</td></tr>
      <tr><th scope="row">Location</th><td>MIDC Additional Ambarnath, Ambarnath West, Dist. Thane, Maharashtra</td></tr>
      <tr><th scope="row">Total corridor surveyed</th><td>2,016.28 m</td></tr>
      <tr><th scope="row">Packages</th><td>3 road links, four width classes (18 m, 15 m, 12 m, 9 m)</td></tr>
      <tr><th scope="row">Pavement</th><td>300 mm PQC in M40 grade over DLC and granular sub-base</td></tr>
      <tr><th scope="row">Civikor's role</th><td>Survey, road estimate (RE) drawings, cross-section and duct design, project management consultancy</td></tr>
      <tr><th scope="row">Survey date</th><td>5 December 2024</td></tr>
      <tr><th scope="row">Status</th><td>Ongoing</td></tr>
    </tbody>
  </table>
</section>

<section class="ck-block">
  <h3>The three packages</h3>
  <table class="ck-table ck-table--data">
    <thead>
      <tr><th scope="col">#</th><th scope="col">Link</th><th scope="col">Length</th><th scope="col">Width</th></tr>
    </thead>
    <tbody>
      <tr><td>1</td><td>Aditya Snacks Corner / Niharika Bhojanalay to junction of the main dumping road</td><td>1,100.00 m</td><td>18.00 m</td></tr>
      <tr><td>2</td><td>Arabian Petroleum Ltd stretch</td><td>275.00 m</td><td>12.00 m</td></tr>
      <tr><td>3</td><td>Green Chilli Family Dhaba stretch</td><td>710.00 m</td><td>9.00 m</td></tr>
    </tbody>
    <tfoot>
      <tr><th scope="row" colspan="2">Total corridor per survey plan</th><td colspan="2">2,016.28 m</td></tr>
    </tfoot>
  </table>
  <p class="ck-note">Road estimate sheets carry the same corridor in chainage form: CH 0–1059.25 m at 18.00 m, CH 0–430.00 m at 15.00 m, CH 0–260.00 m at 9.00 m and CH 0–247.28 m at 12.00 m.</p>
</section>

<section class="ck-block">
  <h3>The brief</h3>
  <p>MIDC Ambarnath West is a working industrial estate, not a planned business park. Its internal roads front Robonik India, Sulzer Pumps India, Arabian Petroleum, Brilliant Polymers, Centaur Pharmaceuticals, Aashish Colors, Arkap Knits, Manisha Industries, Aditya Industries and a Mahanagar Gas CNG station — every one of them running tankers, tippers and container movements across the same surface.</p>
  <p>Under that loading a bituminous pavement fails quickly, and it fails worst at the plant gates where vehicles turn and stand. Ambarnath Municipal Council needed the sector rebuilt in concrete, with a section designed for the actual traffic and a drainage and duct layout that would not need the new slab cut open six months later.</p>
</section>

<section class="ck-block">
  <h3>Scope of work</h3>
  <ul class="ck-list">
    <li><strong>Corridor survey (December 2024)</strong> — 2,016.28 m of industrial road recorded with existing drains, fire hydrants and utility positions.</li>
    <li><strong>Width classification</strong> — the corridor split into 18 m, 15 m, 12 m and 9 m classes so each link gets the section its frontage and turning movements actually require, instead of a single width applied across the sector.</li>
    <li><strong>Road estimate (RE) sheets 1–3</strong> — plan, longitudinal section and quantities, chainage-referenced across the full length.</li>
    <li><strong>Typical cross-sections</strong> for each width class, covering carriageway, footpath, kerb and drain.</li>
    <li><strong>Cross duct and trial pit details</strong> — subsurface strata logged and service crossings positioned before construction.</li>

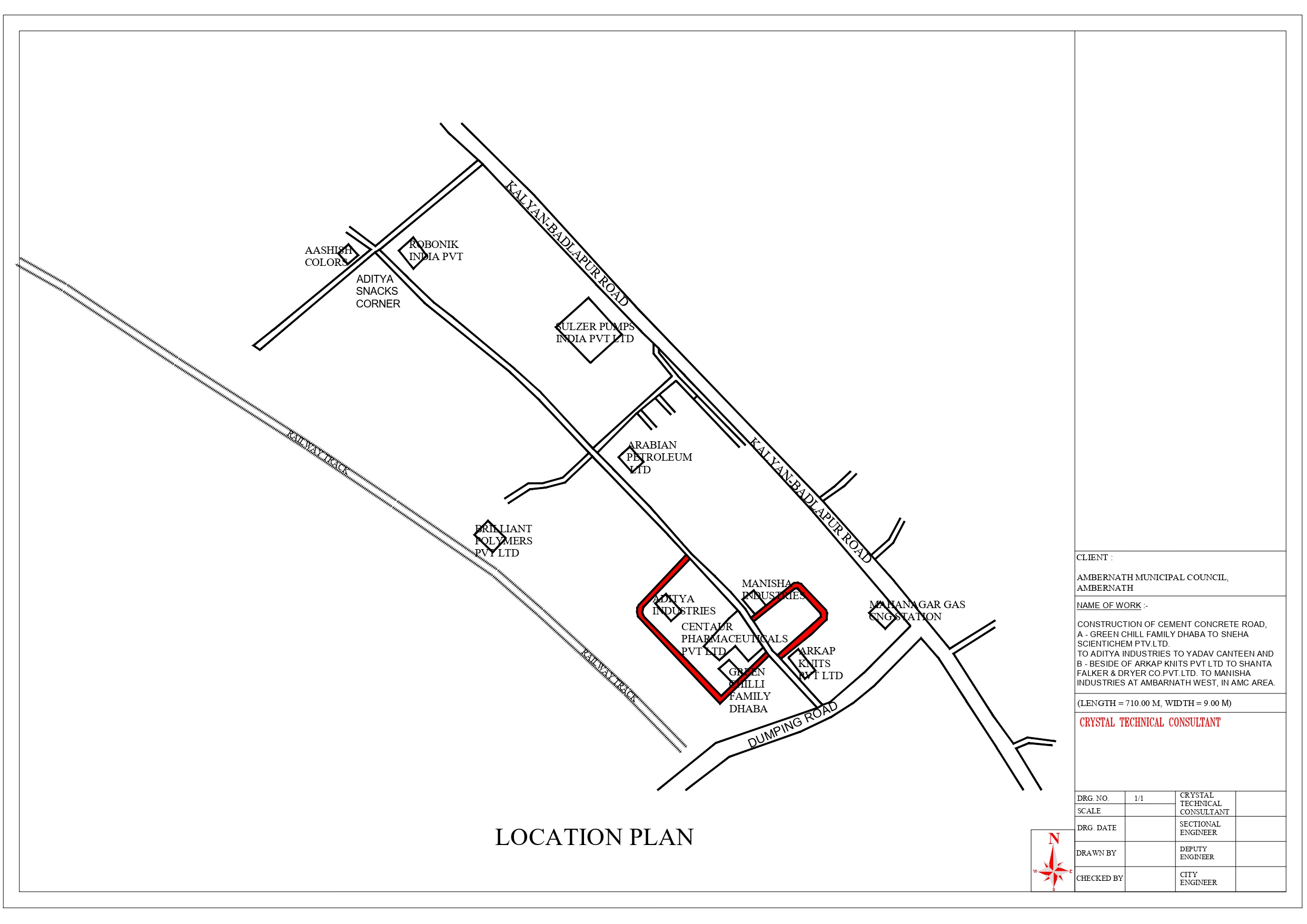

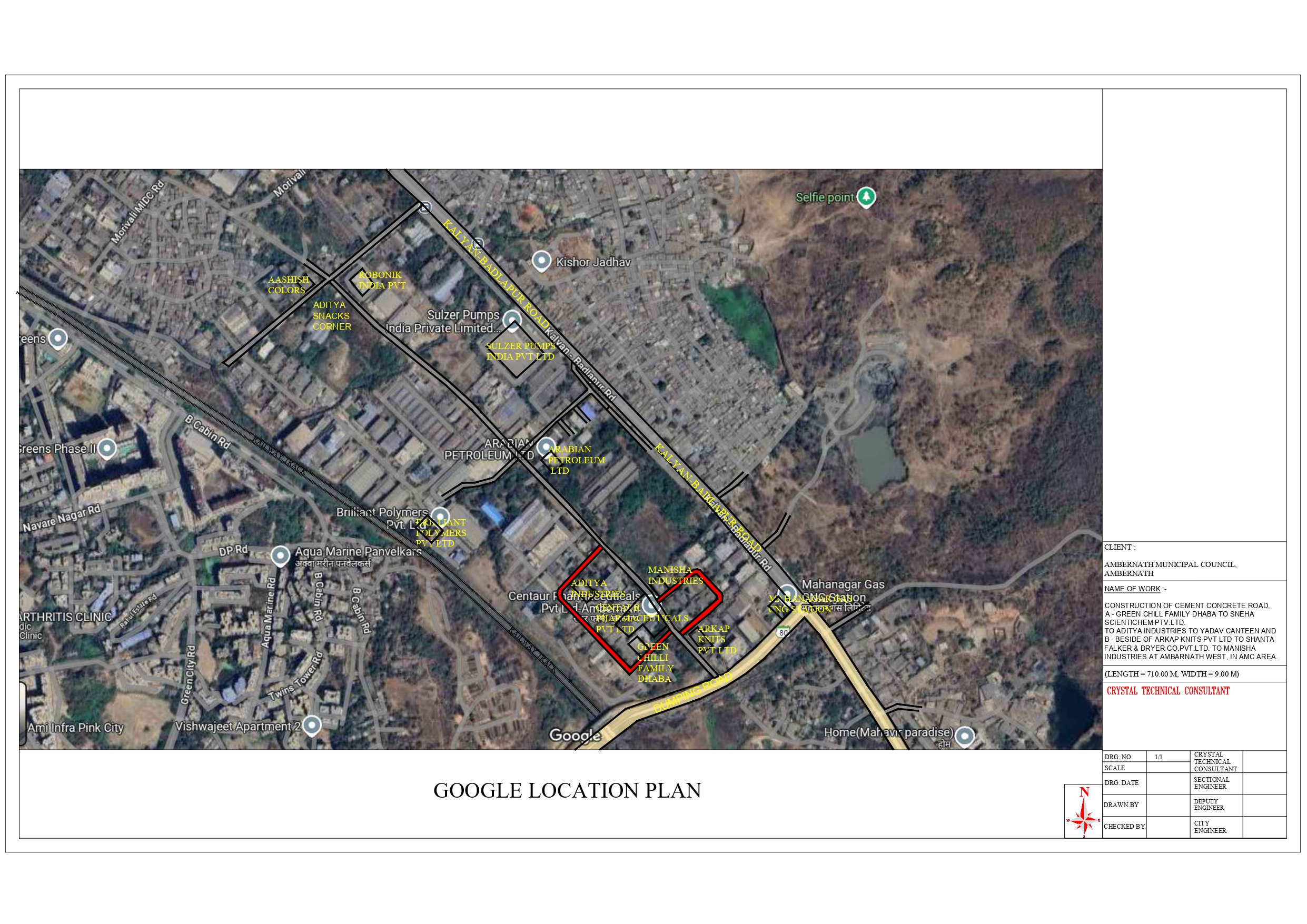

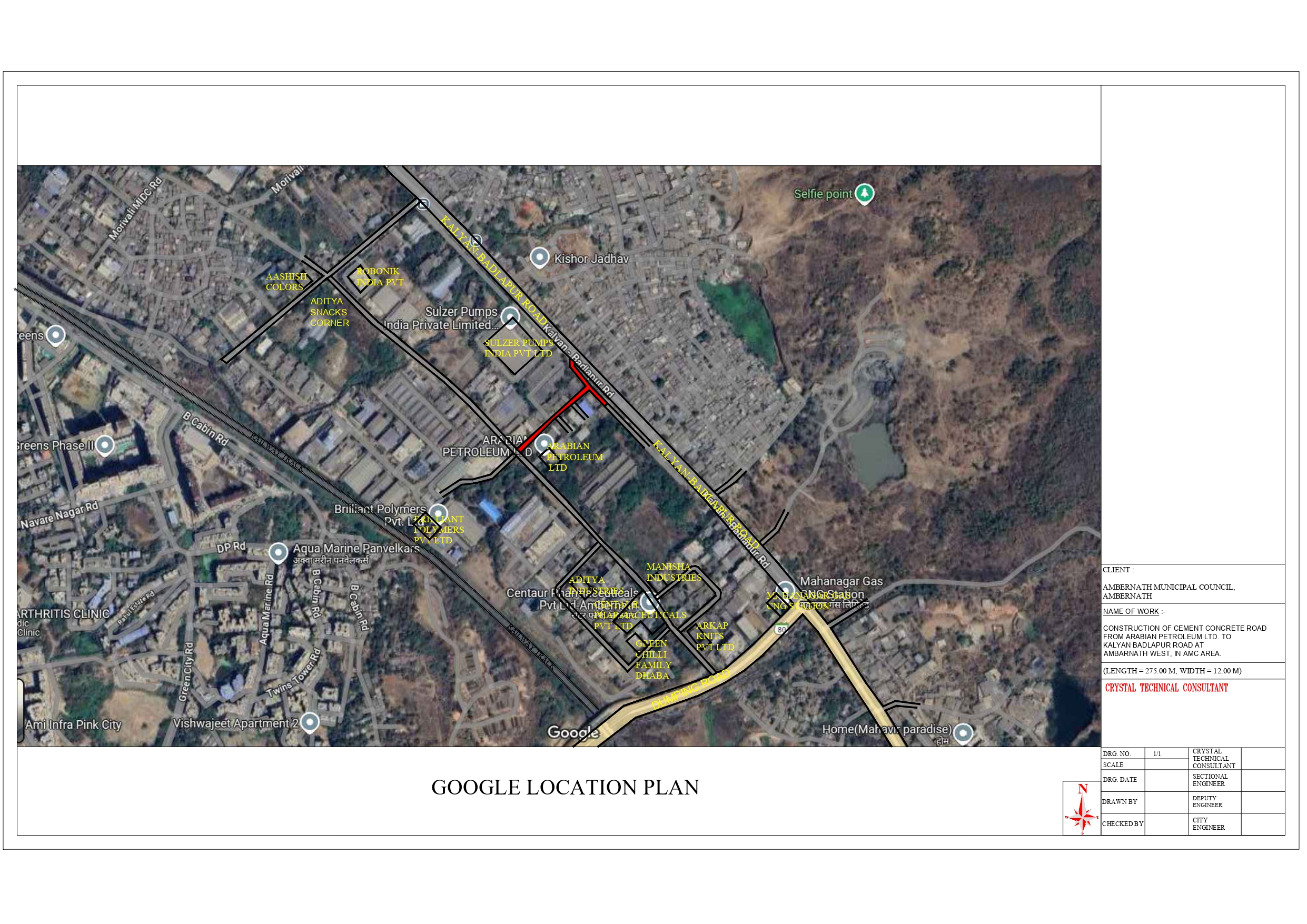

    <li><strong>Gate-wise location plans</strong> — separate location and Google location plans issued for the Aditya Snacks, Arabian Petroleum and Green Chilli Dhaba stretches, each naming the industrial units it fronts.</li>
    <li><strong>Project management consultancy</strong> through execution.</li>
  </ul>
</section>

<section class="ck-block">
  <h3>Pavement specification</h3>
  <p>Typical 18.00 m section — 1.50 m footpath + 2.00 m side strip + 5.50 m carriageway + 5.50 m carriageway + 2.00 m side strip + 1.50 m footpath, at 2% camber.</p>
  <table class="ck-table ck-table--data">
    <thead>
      <tr><th scope="col">Element</th><th scope="col">Layer</th><th scope="col">Thickness / grade</th></tr>
    </thead>
    <tbody>
      <tr><td rowspan="5">Carriageway<br><span class="ck-sub">top down</span></td><td>Pavement quality concrete (PQC)</td><td>0.30 m — M40</td></tr>
      <tr><td>Dry lean concrete (DLC)</td><td>0.15 m</td></tr>
      <tr><td>Granular sub-base I</td><td>0.15 m</td></tr>
      <tr><td>Granular sub-base II</td><td>0.15 m</td></tr>
      <tr><td>Soling</td><td>0.23 m</td></tr>
      <tr><td rowspan="4">Footpath</td><td>Paver block</td><td>0.10 m</td></tr>
      <tr><td>PCC</td><td>0.15 m</td></tr>
      <tr><td>Granular sub-base I</td><td>0.15 m</td></tr>
      <tr><td>Filling</td><td>0.10 m</td></tr>
      <tr><td rowspan="5">Side drain</td><td>RCC cover slab</td><td>0.20 m — M25</td></tr>
      <tr><td>RCC gutter pardi</td><td>0.25 m — M25</td></tr>
      <tr><td>RCC raft</td><td>0.30 m — M25</td></tr>
      <tr><td>PCC bedding</td><td>0.20 m — M15</td></tr>
      <tr><td>Soling</td><td>0.23 m</td></tr>
      <tr><td rowspan="3">Cross duct</td><td>RCC pipe, NP2 class</td><td>0.30 m dia</td></tr>
      <tr><td>Soil filling over pipe</td><td>0.60 m</td></tr>
      <tr><td>PCC surround</td><td>0.15 m — M15</td></tr>
    </tbody>
  </table>
  <p class="ck-note">Kerb stone with water table to both edges. The 12.00 m section follows the same build-up at 1.50 + 1.50 + 3.00 + 3.00 + 1.50 + 1.50 m.</p>
</section>

<section class="ck-block">
  <h3>How we approached it</h3>
  <h4>Trial pits before design, not during construction</h4>
  <p>Trial pits were sunk along the corridor and the strata logged — silt, clay and pebbles over soft murum. Knowing the subgrade before finalising the section is what allows a 0.23 m soling and twin granular sub-base to be specified with confidence, instead of discovering the problem after the DLC is placed.</p>

  <h4>Chainage-referenced service crossings</h4>
  <p>Existing drains and utility crossings were fixed by chainage across the corridor — at 30–40 m, 90 m, 110 m, 170–180 m, 230 m, 320 m, 510 m, 560 m, 840 m and 880 m on the main 18 m link alone. Every one of them is a decision point on a rigid pavement, and every one is resolved on the drawing rather than on site.</p>

  <h4>Width matched to frontage</h4>
  <p>Four width classes across one sector is deliberate. The main link to the dumping road takes 18 m because it carries the estate's through traffic; the Green Chilli Dhaba stretch takes 9 m because widening it further would only consume industrial plot area for no operational gain. Sizing each link separately kept scope proportionate to use.</p>

  <h4>Designed to stay uncut</h4>
  <p>Cross ducts at 0.30 m dia are cast in during construction at every anticipated crossing. On an industrial estate where new plants connect utilities every year, this is the single decision that protects a 30-year concrete pavement from being trenched in year two.</p>
</section>

<section class="ck-block">
  <h3>Why it matters</h3>
  <ul class="ck-list ck-list--tick">
    <li><strong>Built for industrial loading.</strong> M40 pavement quality concrete over DLC carries the tanker and container traffic these plants actually run — where a bituminous surface would rut and shove within a season.</li>
    <li><strong>Two kilometres treated as one asset.</strong> Continuous levels, drainage falls and duct positions across all three packages, rather than three roads that meet awkwardly at their joints.</li>
    <li><strong>Predictable access for eleven industrial units.</strong> Named gate-wise plans mean each occupier could see and sign off on its own frontage before work began.</li>
    <li><strong>Drainage that survives the monsoon.</strong> Covered RCC side drains on a raft foundation, sized to keep an industrial corridor operating through Konkan rainfall.</li>
    <li><strong>Low whole-life cost.</strong> Rigid pavement with pre-installed crossings shifts spending from recurring repair to a one-time asset.</li>
  </ul>
</section>

<section class="ck-block">
  <h3>Industrial frontage served</h3>
  <p>Robonik India Pvt Ltd · Aashish Colors · Sulzer Pumps India Pvt Ltd · Arabian Petroleum Ltd · Brilliant Polymers Pvt Ltd · Manisha Industries · Aditya Industries · Centaur Pharmaceuticals · Arkap Knits Pvt Ltd · Mahanagar Gas CNG Station · Green Chilli Family Dhaba</p>
</section>

<section class="ck-block">
  <h3>Drawing set</h3>
  <ol class="ck-list ck-list--num">

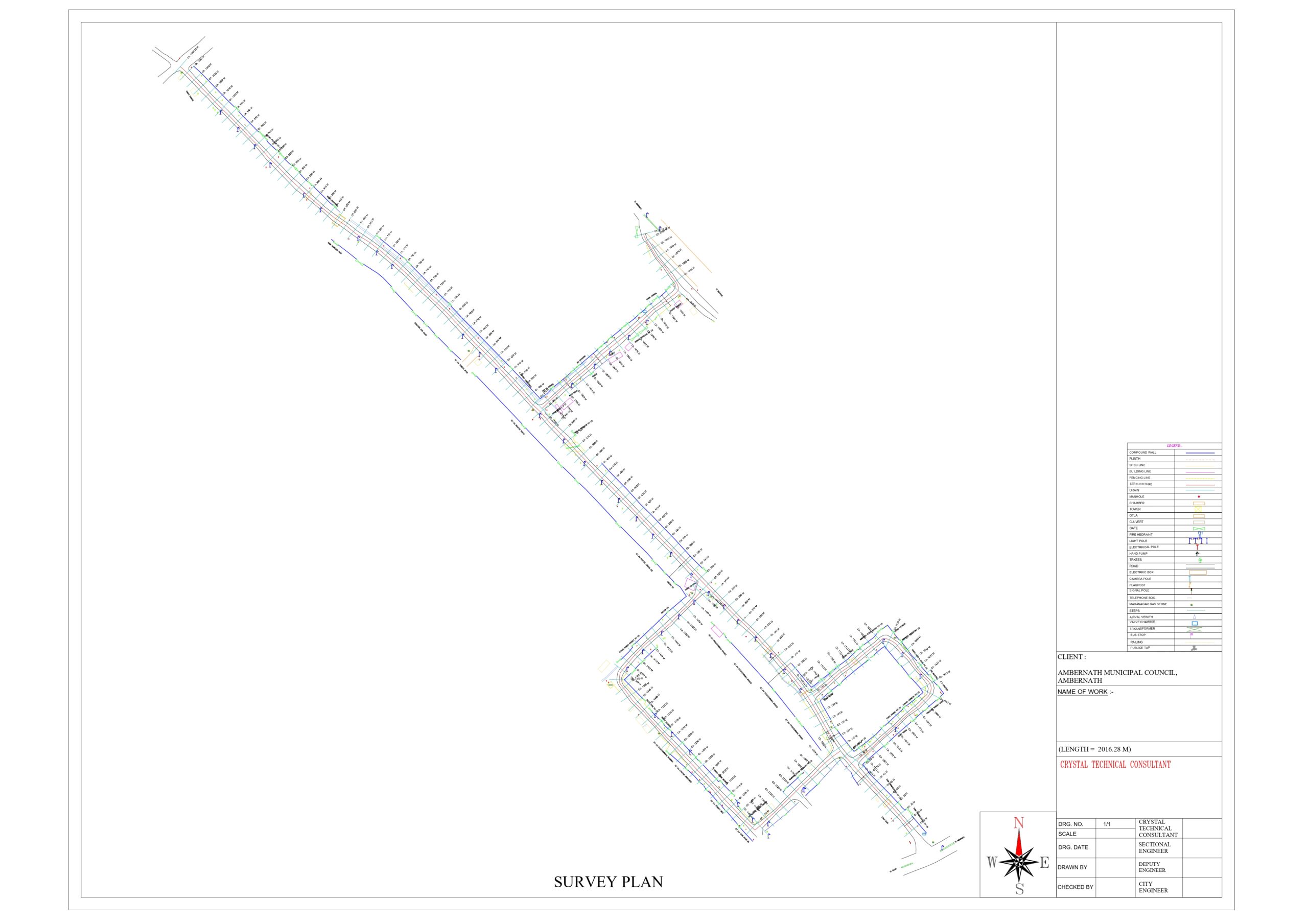

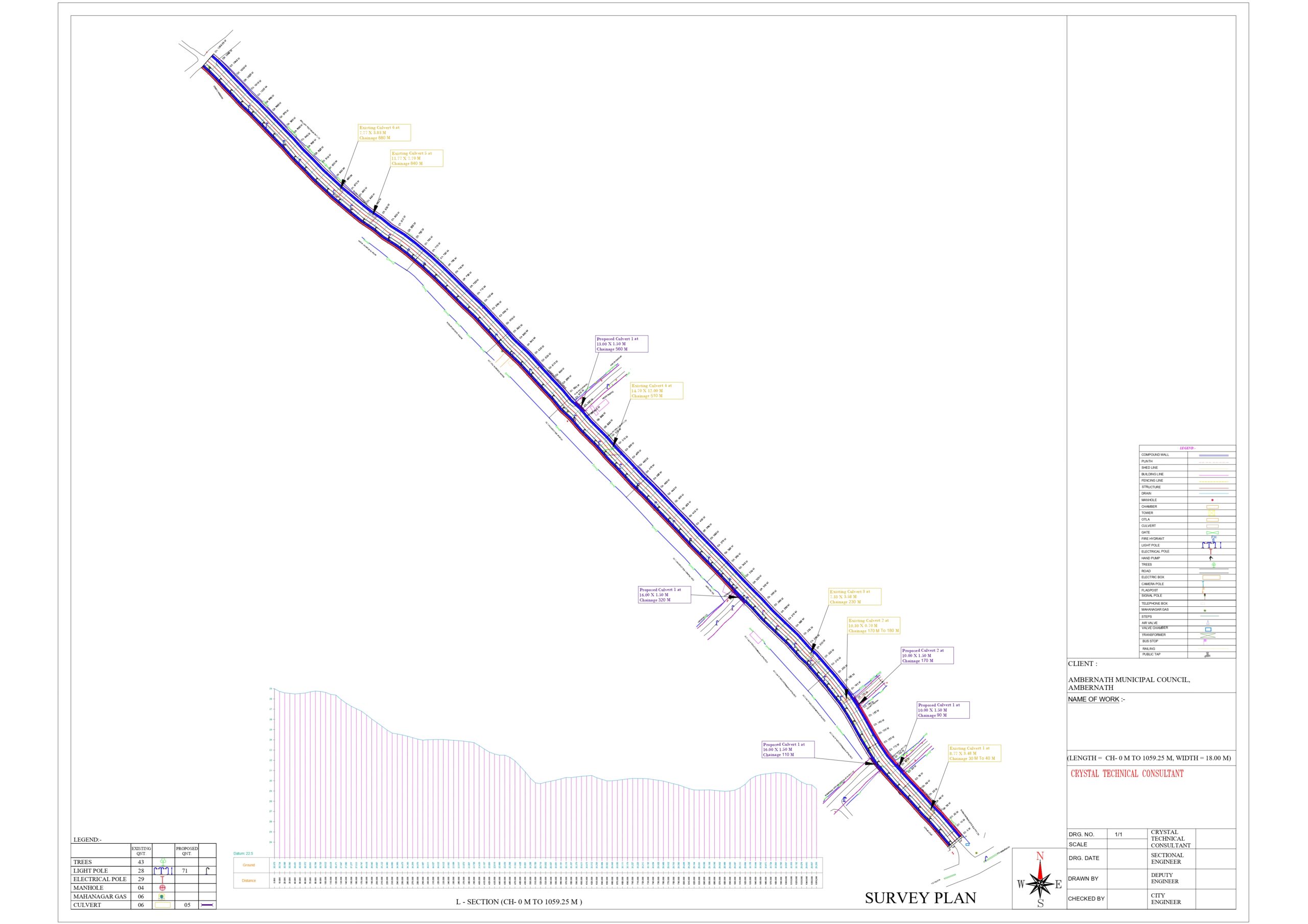

    <li><strong>MIDC survey plan I</strong> (5 December 2024) — full 2,016.28 m corridor.</li>

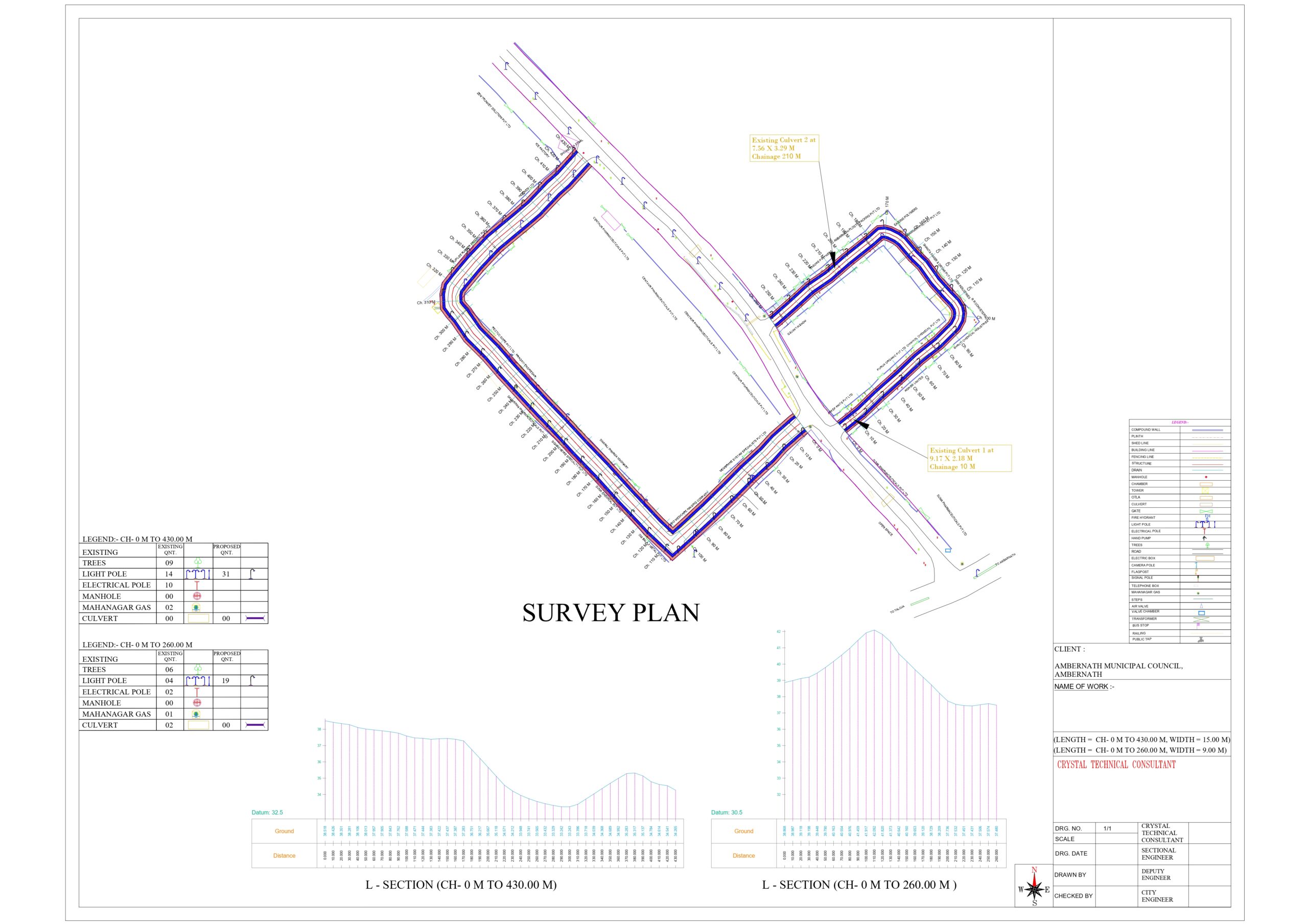

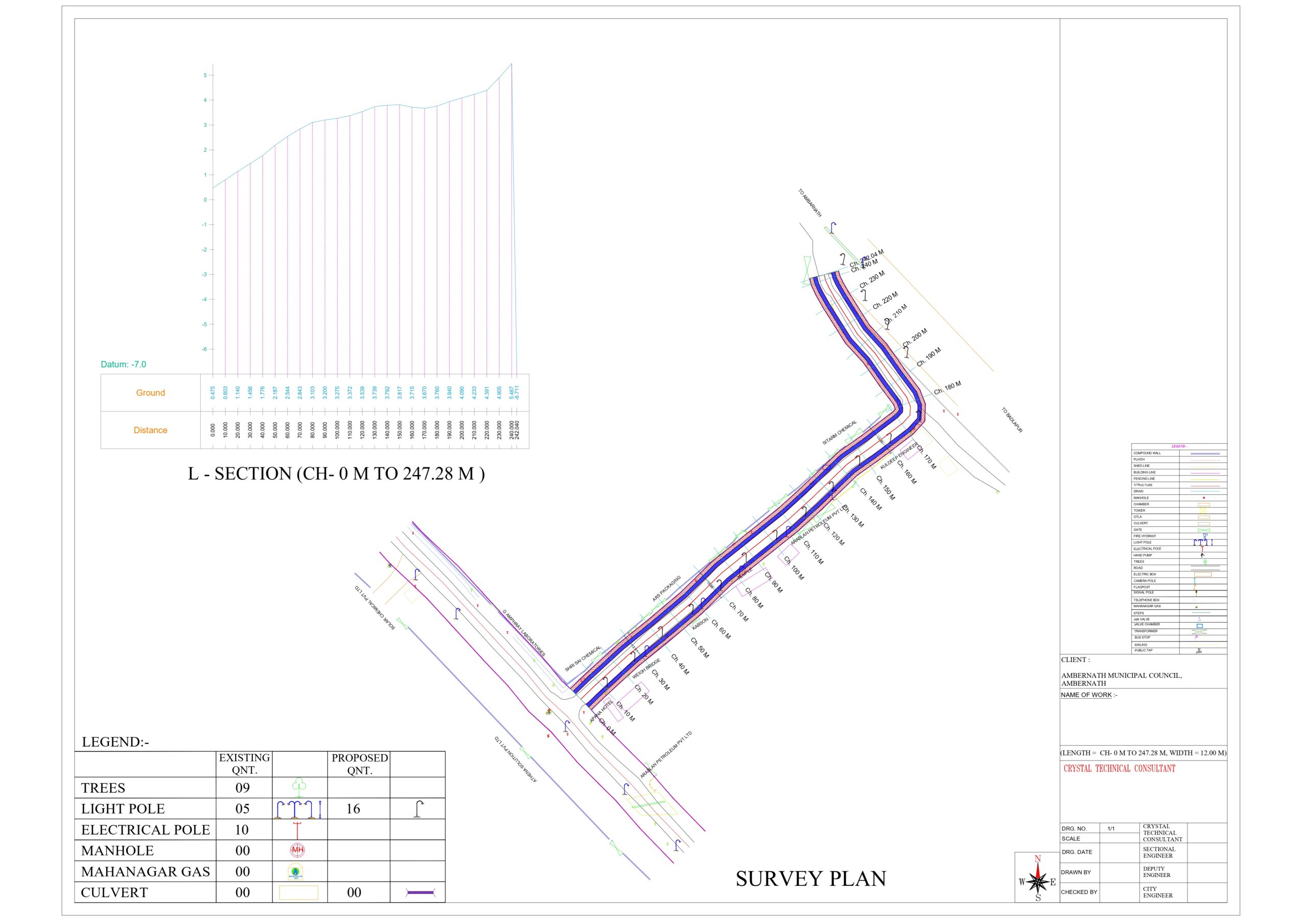

    <li><strong>RE sheets 1, 2 and 3</strong> — chainage-wise plan, section and quantities.</li>

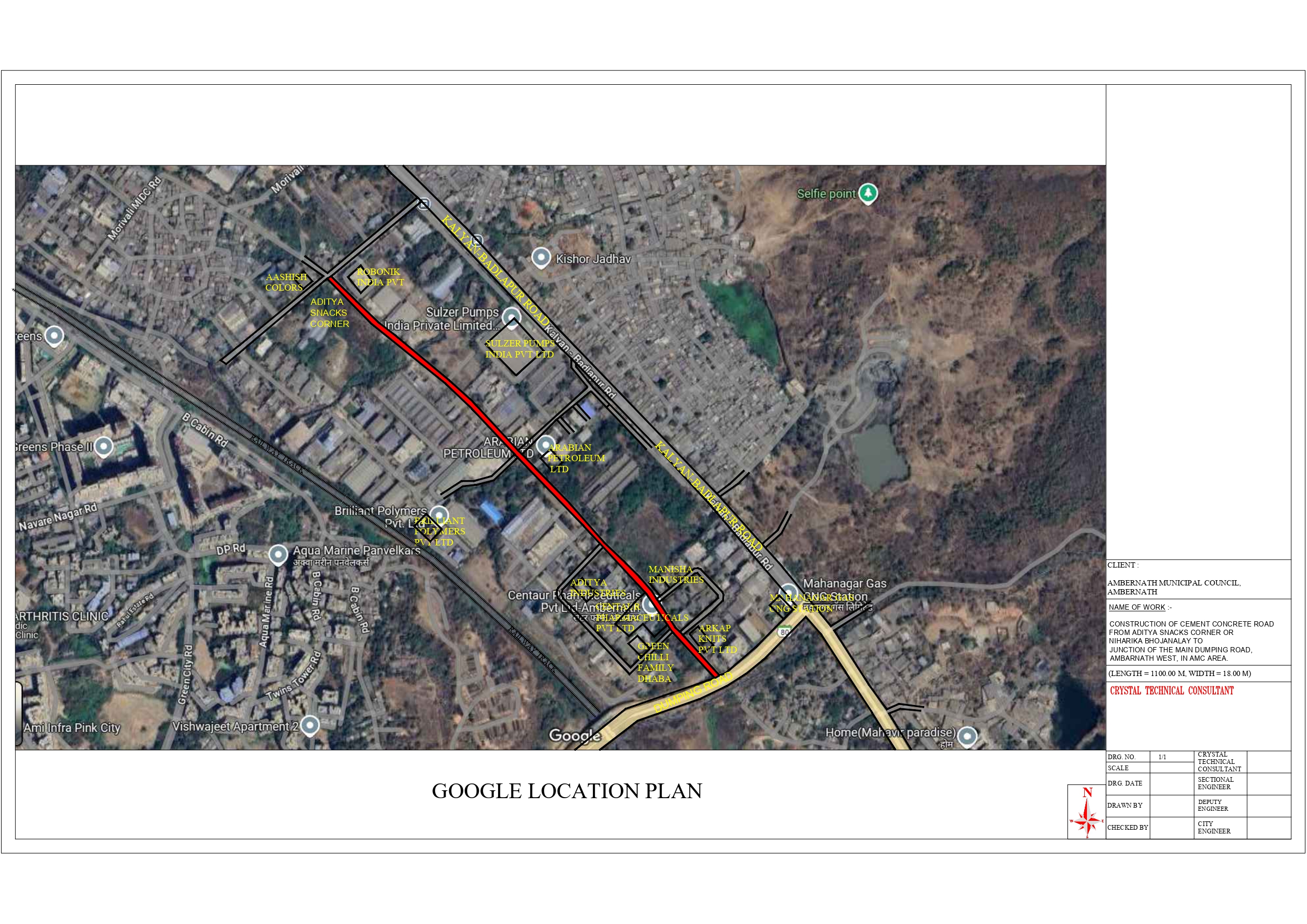

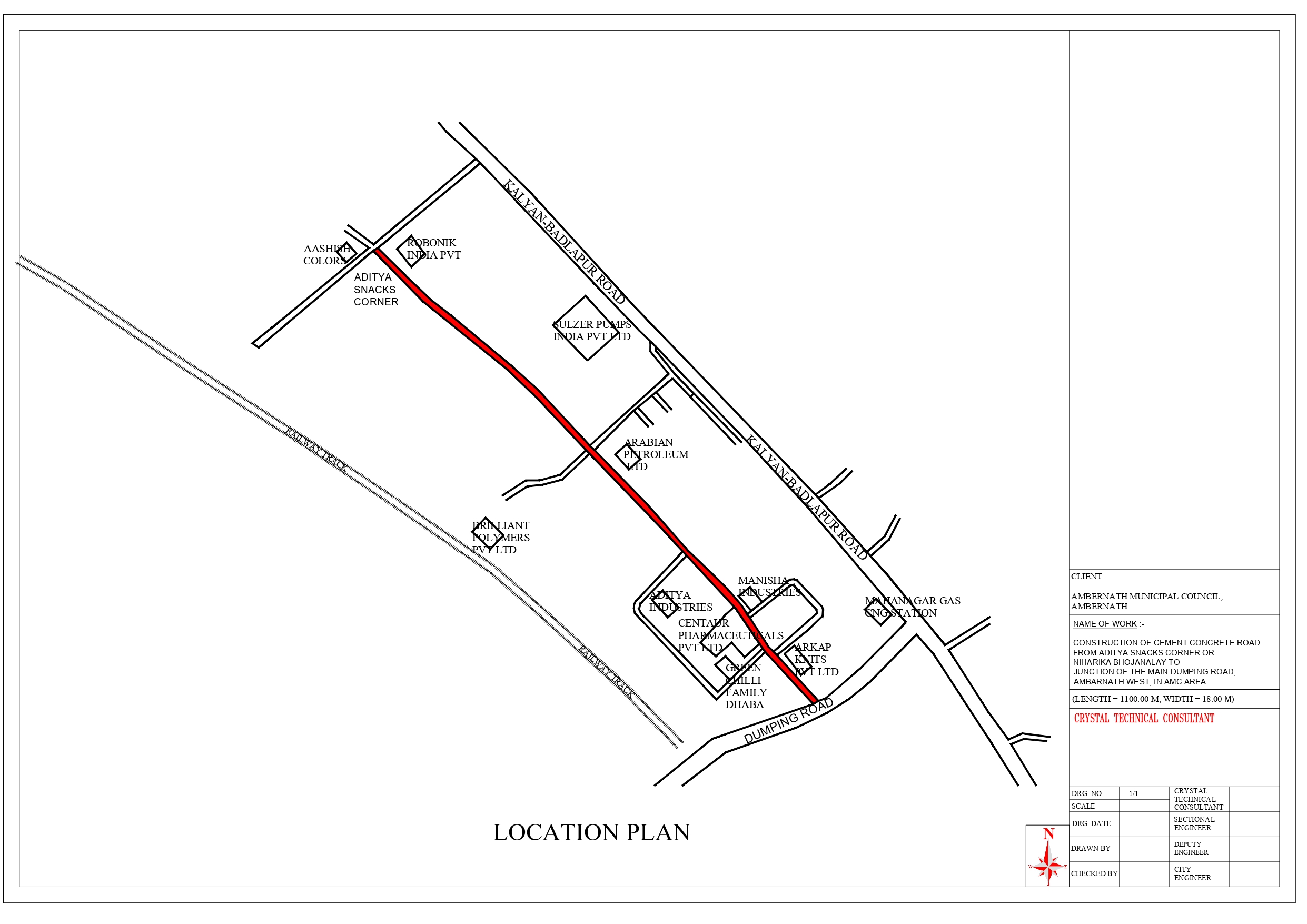

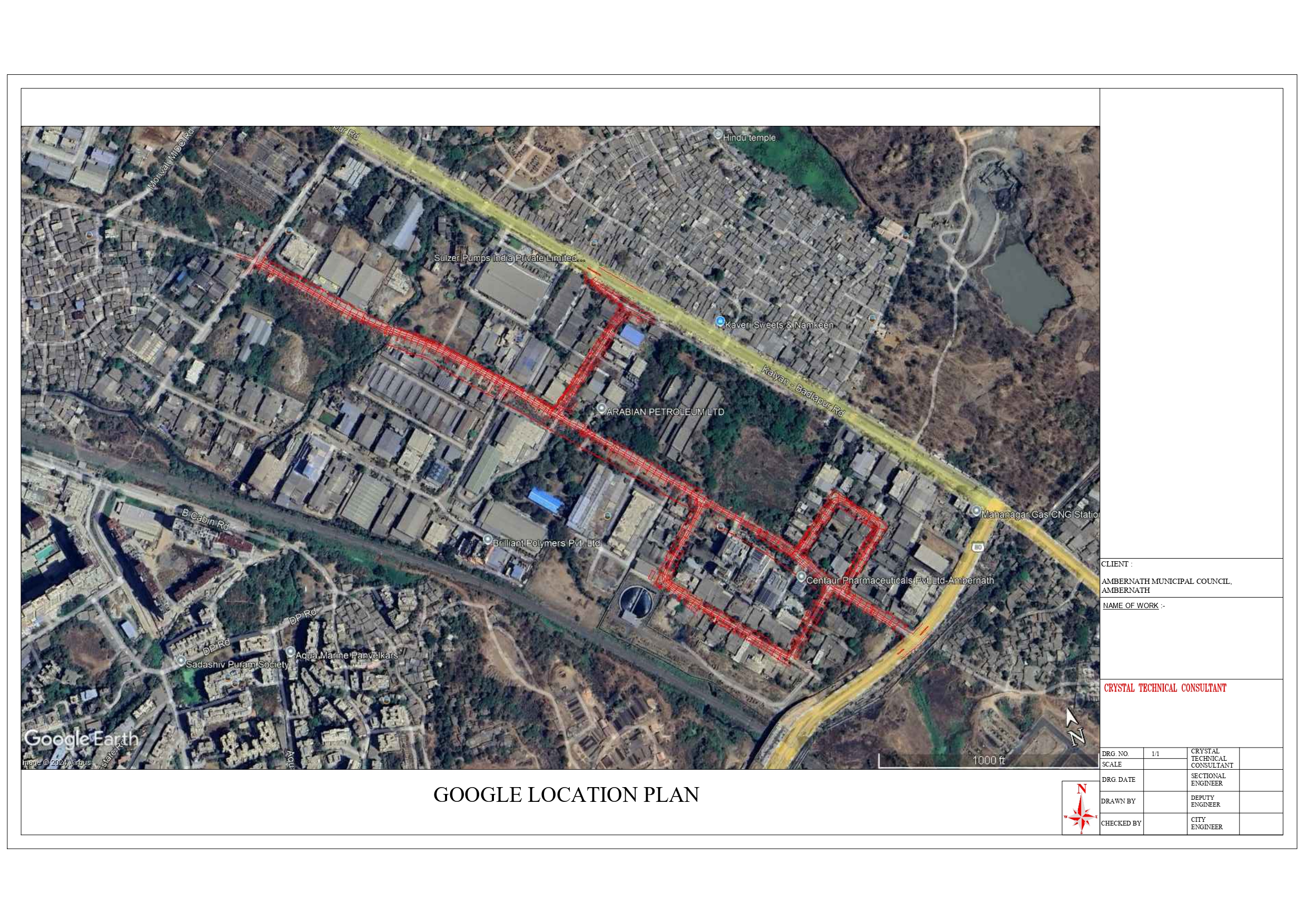

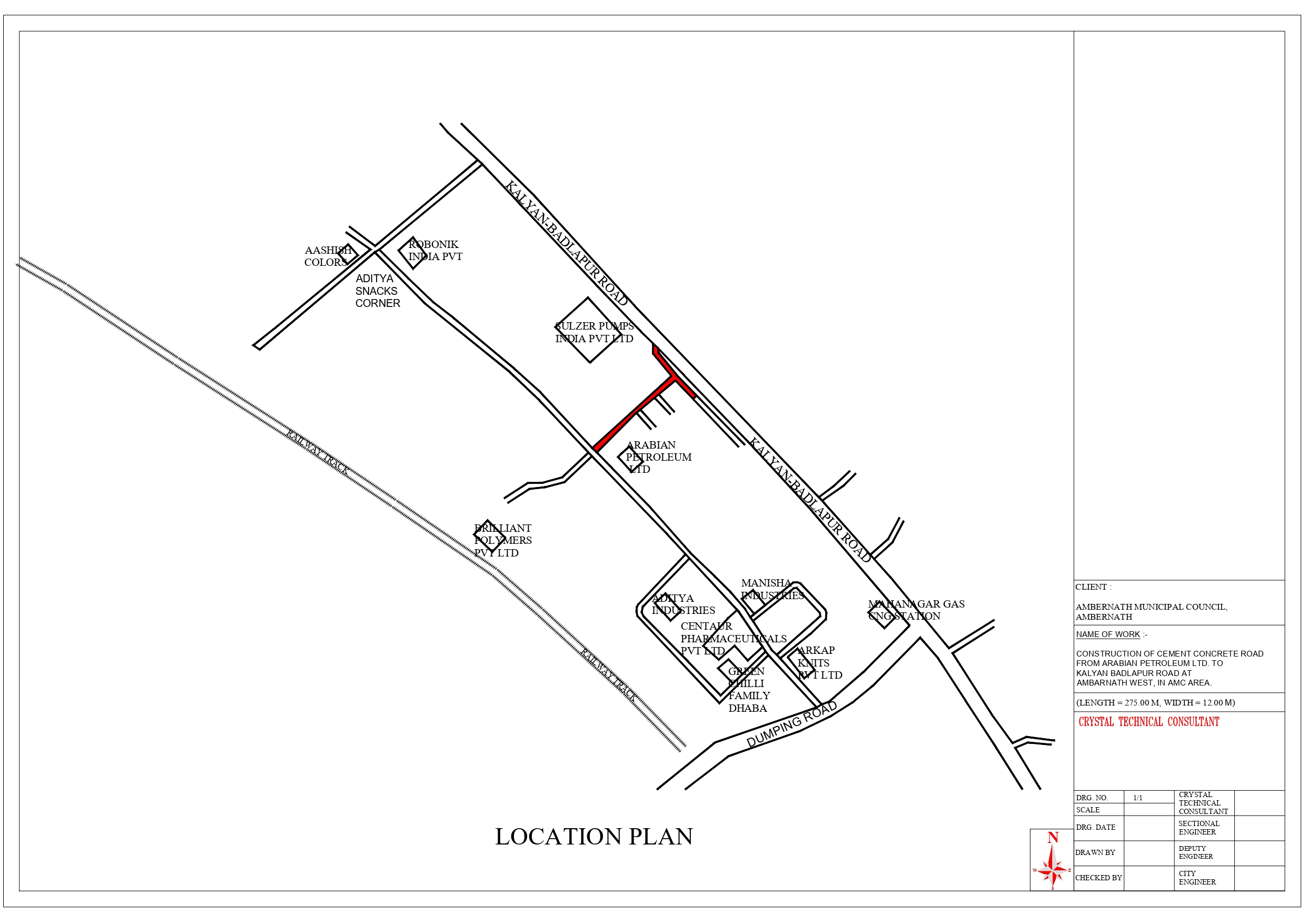

    <li><strong>Location and Google location plans</strong> — issued separately for the Aditya Snacks, Arabian Petroleum and Green Chilli Dhaba stretches.</li>
    <li><strong>Typical road cross-sections</strong> — 18.00 m and 12.00 m width classes.</li>

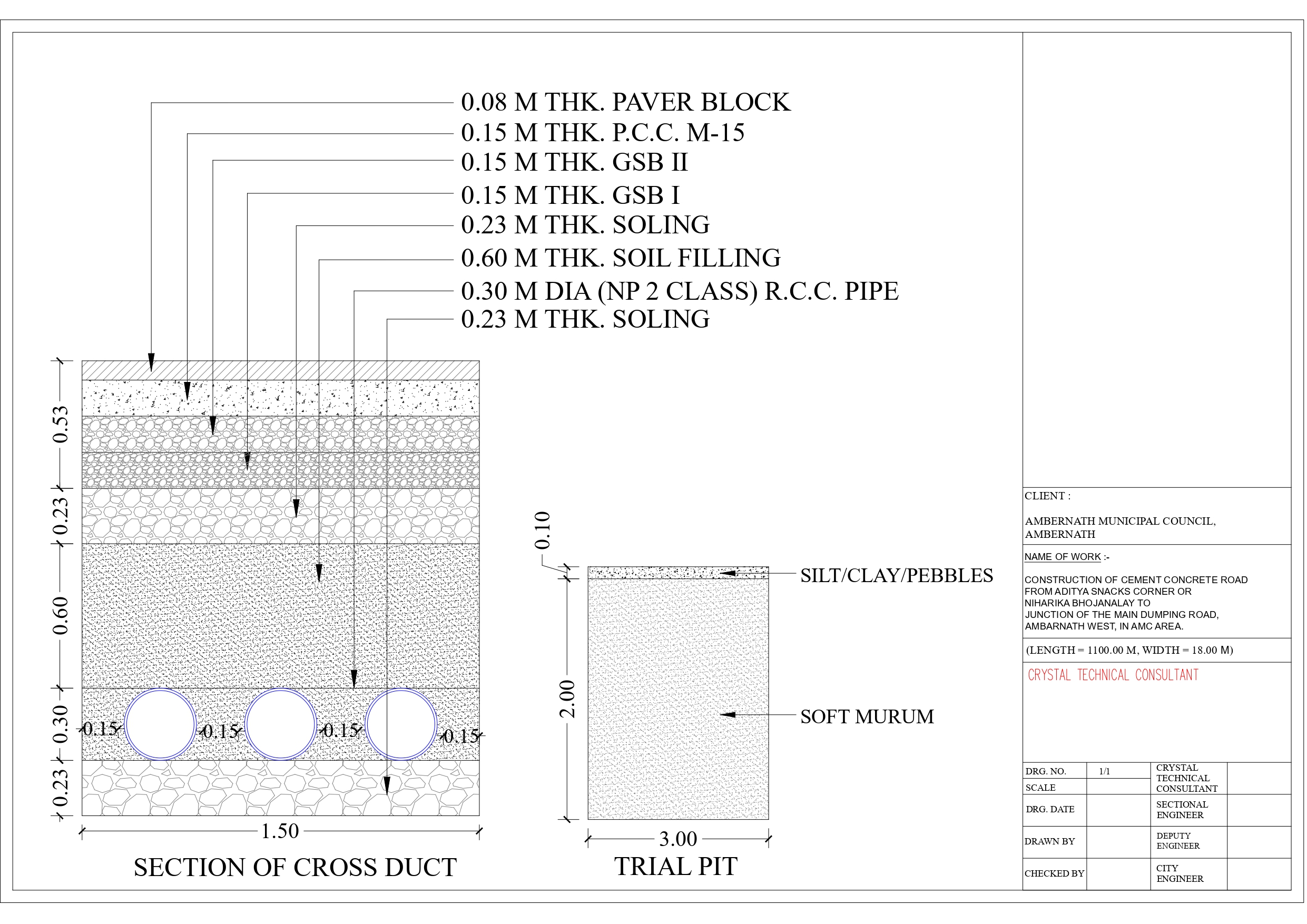

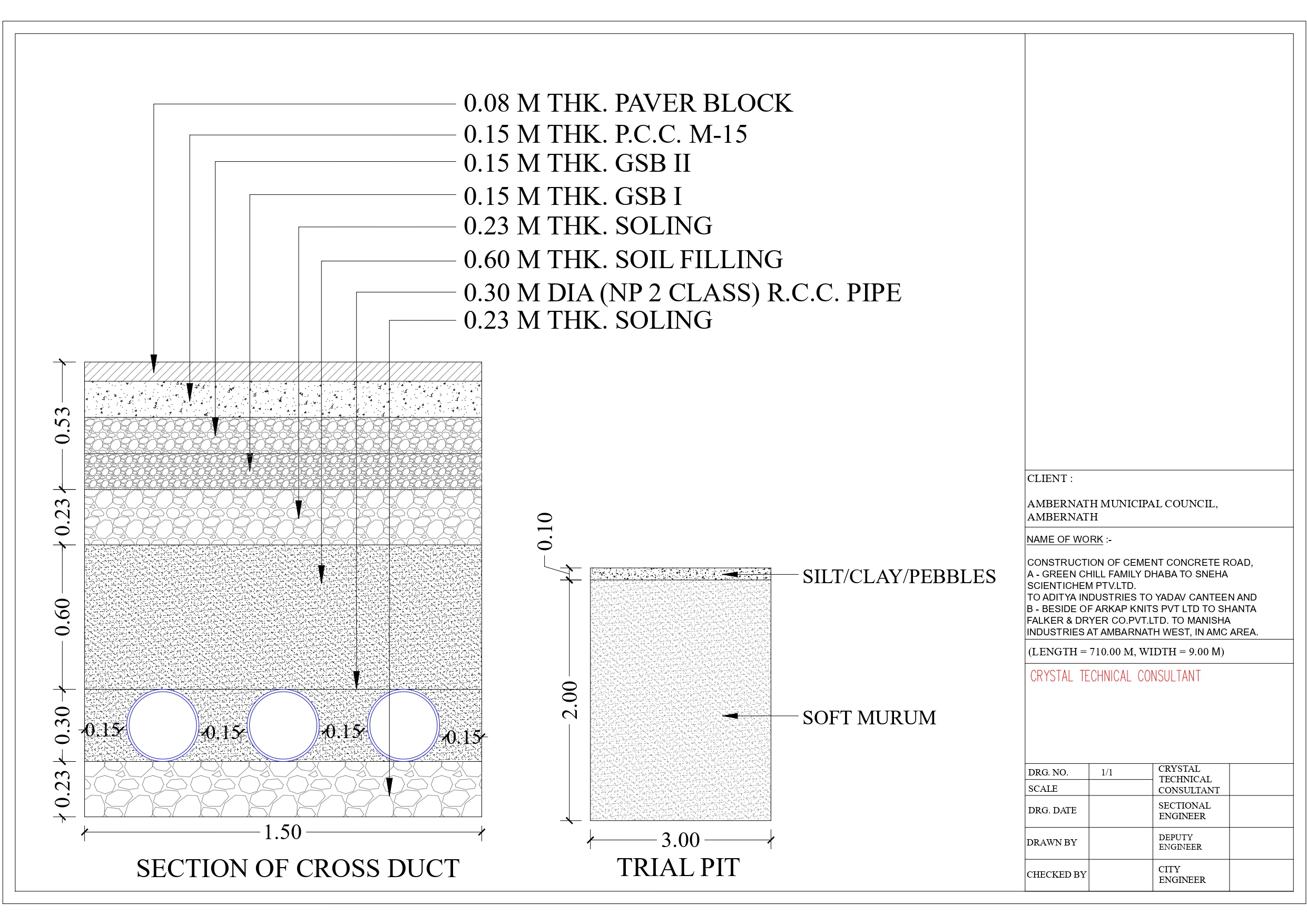

    <li><strong>Section of cross duct and trial pit</strong> — service crossing detail with logged strata.</li>
  </ol>
